1 - 6t
Specifically designed to allow for correct width trench digging, an accurate trench width can be achieved with the greatest ease, while reducing digging time. Delivering a higher fill factor, the design also enables ground resistance to be removed, thus increasing cycle times.
Universal Pin
(1-6t as standard)
Light Duty Teeth
(1-6t as standard)RECOMMENDED APPLICATIONS:
Ideal for narrow channelling, cabling, pipe works.
KEY SPECIFICATIONS
Range (t) | Width (mm) | Capacity (m3) | Weight (kg) |
|---|---|---|---|
1-2 | 250 | 0.014 | 35 |
2-3 | 250 | 0.027 | 51 |
3-6 | 300 | 0.05 | 120 |
Our compact trench buckets are available with our bundle sets, which include a hydraulic coupler for machines sized 1-6t. This allows our customers to drive cost savings when bought together.
Find out moreFEATURES

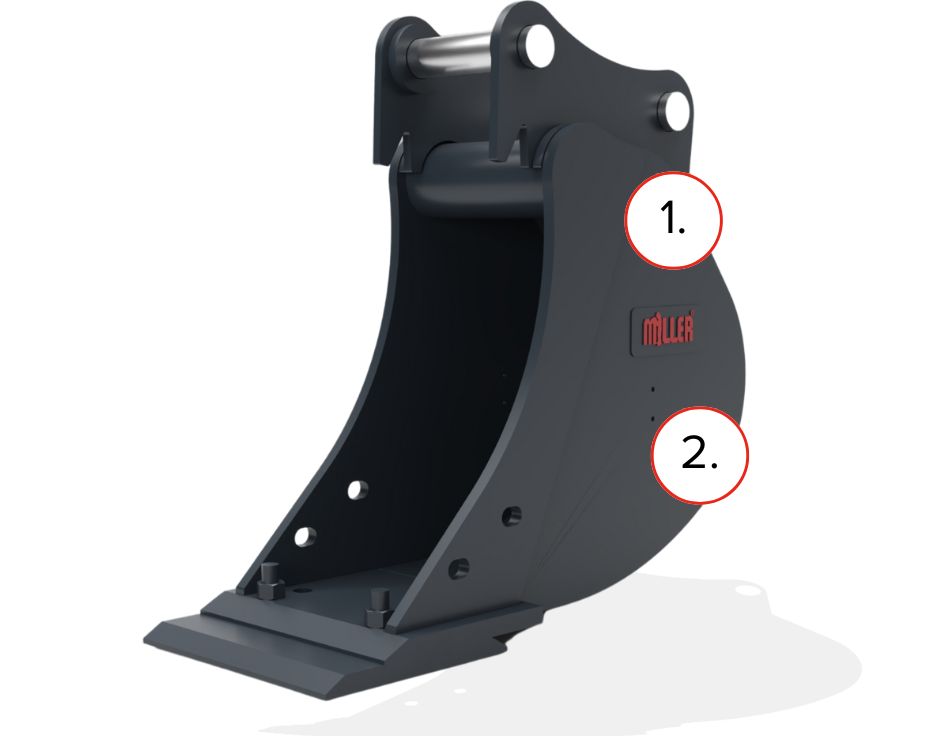

Miller’s compact range has been designed for superior performance on light muckshifting duties, allowing for increased productivity.
The dual radius shell has been designed with maximum resistance in high wear areas with further protection from the side cutters.
The bottom side plate - a high wear area - is armoured with increased resistance using additional high wear resistant steel.
