1 - 6t

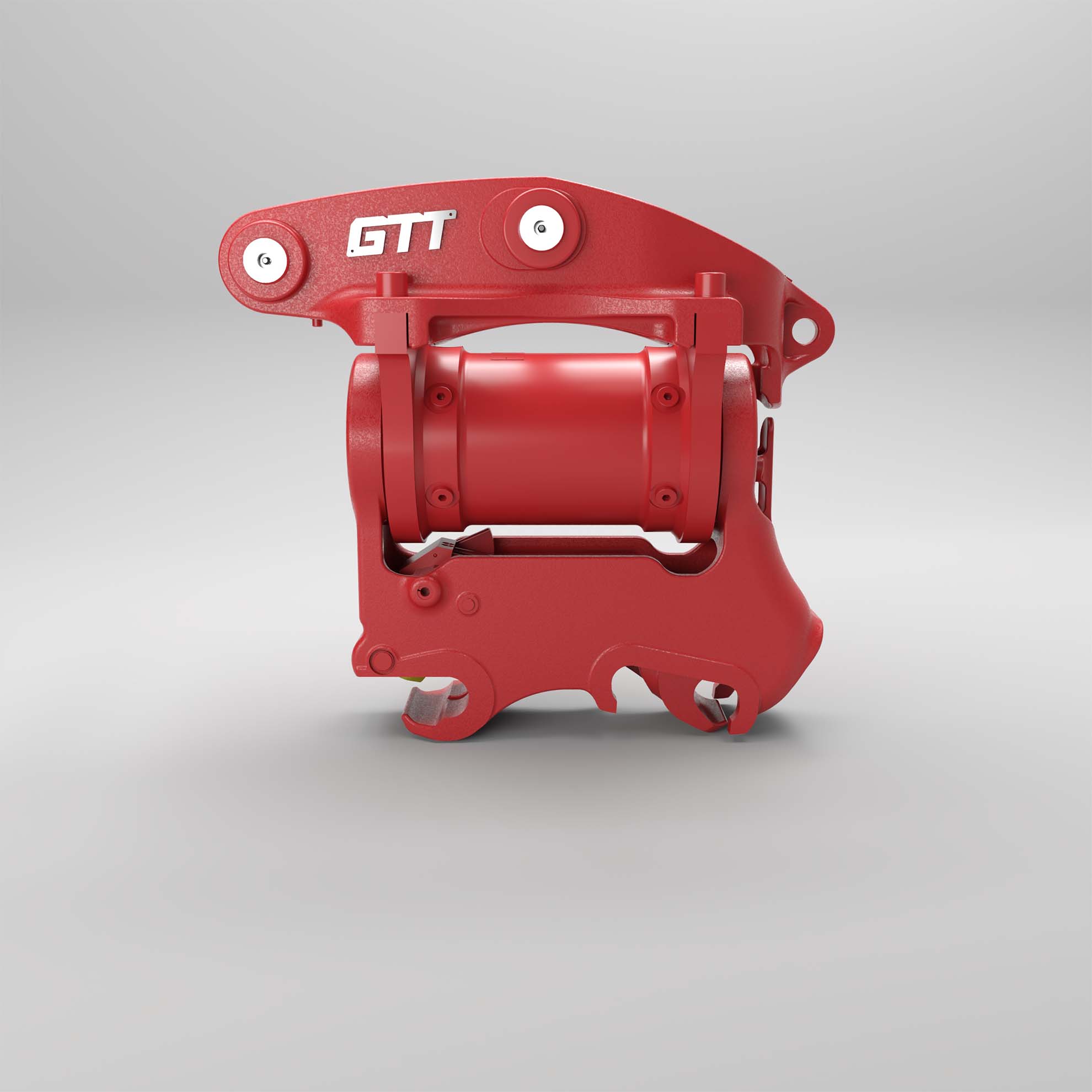

Our GTT – quick hydraulic tilt coupler – delivers exceptional versatility whilst enabling fast and easy attachment changes. Achieving 180° of tilt rotation, operators can achieve a wide range of motion, simplifying a complex job, whilst remaining in just one position. Increasing productivity, our lightweight tilt coupler can often eliminate the need for additional specialised equipment, reducing costs.
Twin-lock Front and Rear
In-Cab Attachment Changeovers
Universal OEM Pickup
ISO13031/ AS13031 Compliant
Up to 180° Rotary Actuator
RECOMMENDED APPLICATIONS:
Slope profiling & finish grading, landscaping & contouring, drainage & waterways & more.
Select your machine, make and model to determine which GTT range which fit perfectly with your machine.
FIND THE RIGHT SIZE
Our GTT tilting couplers are available with a five-year extended warranty, allowing you to achieve full peace of mind and saving up to 100% of all parts and labour costs.
Miller GUARDFEATURES

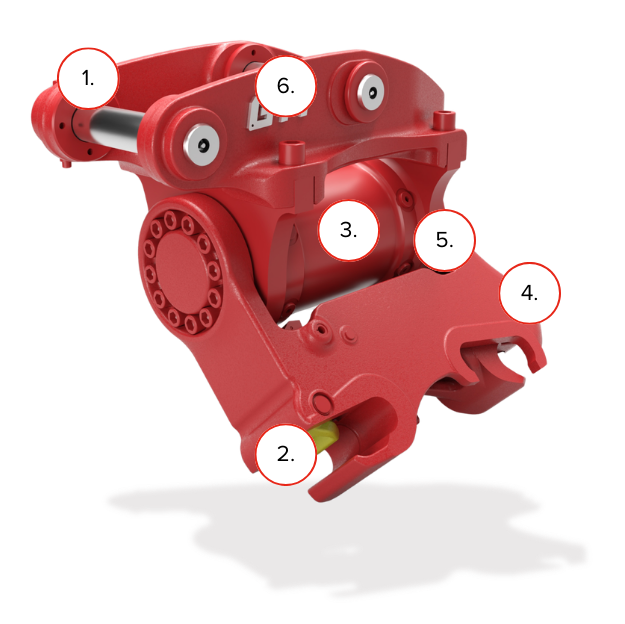

Designed with fewer components to reduce repairs and maintenance requirements, our GTT utilises GTS coupler technology – which has been proven in the market for many years to be one of the most advanced of its kind – with the addition of tilt functionality designed to increase versatility.
A low-profile design that optimizes pin-to-point geometry for efficient digging and stability, even when tilting at extreme angles.
An independent, bi-directional front latch system that remains firmly locked under tilt motions, allowing operators to safely operate and detach attachments at a wide range of angles.
A fully integrated tilt system that provides guaranteed rotation of 180°, delivering precise angle control for grading, sloping, and finish work, without sacrificing power or torque.
A reliable lifting eye, ensuring safe handling of loads even when the attachment is angled.
A self-contained ISO-certified safety mechanism that prevents attachment loss when rotating or tilting, even in the event of hydraulic failure.
A curved, high strength cast frame that remains lightweight to support tilt functionality while providing durability for challenging tasks.
KEY SPECIFICATIONS
GTT Range | Excavator Weight (t) | Coupler Mass (kg) | Pin Diameter (mm) | Rotation (ᵒ) | Min Pickup Width (mm) | Pin Pickup Range (mm) |
|---|---|---|---|---|---|---|
Range 0A | 1-1.5 | 32.9 - 34.2 | 30 | 180 | 94/96 | 85 - 118 |
Range 0B | 1.5 - 2 | 34.9 - 35.5 | 30 | 180 | 103 | 121 - 161 |
Range 1A | 2 | 87.7 - 89.0 | 35 | 180 | 105 | 125 - 150 |
Range 1B02 | 2 - 3 | 90.8 - 92.7 | 35 | 180 | 117 | 160 - 200 |
Range 1B01 | 3 - 3.5 | 94.4 - 95.5 | 38/40 | 180 | 117 | 172 - 215 |
Range 2A | 5 | 125.9 - | 45 | 180 | 144 | 220 - 285 |
