8 - 25t

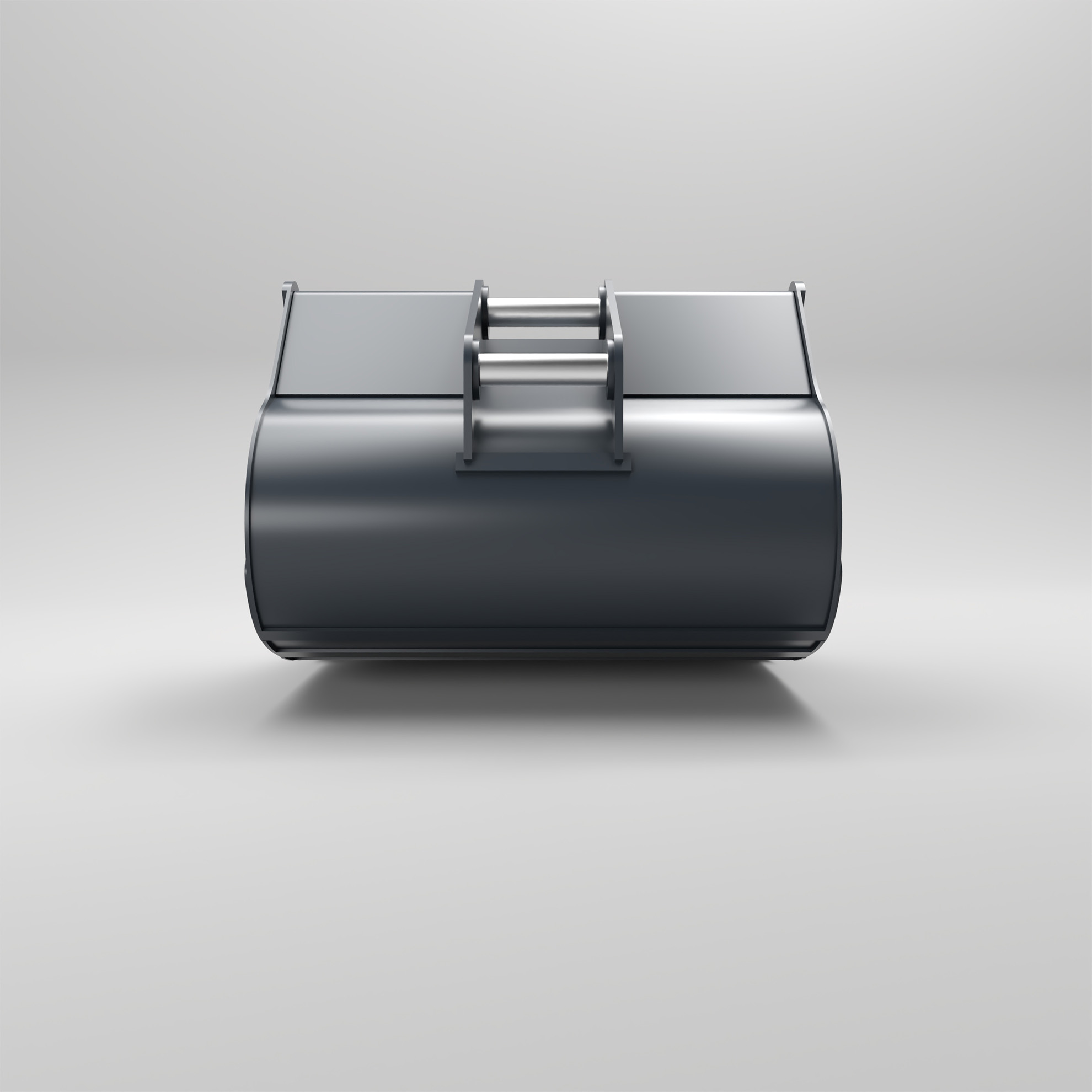

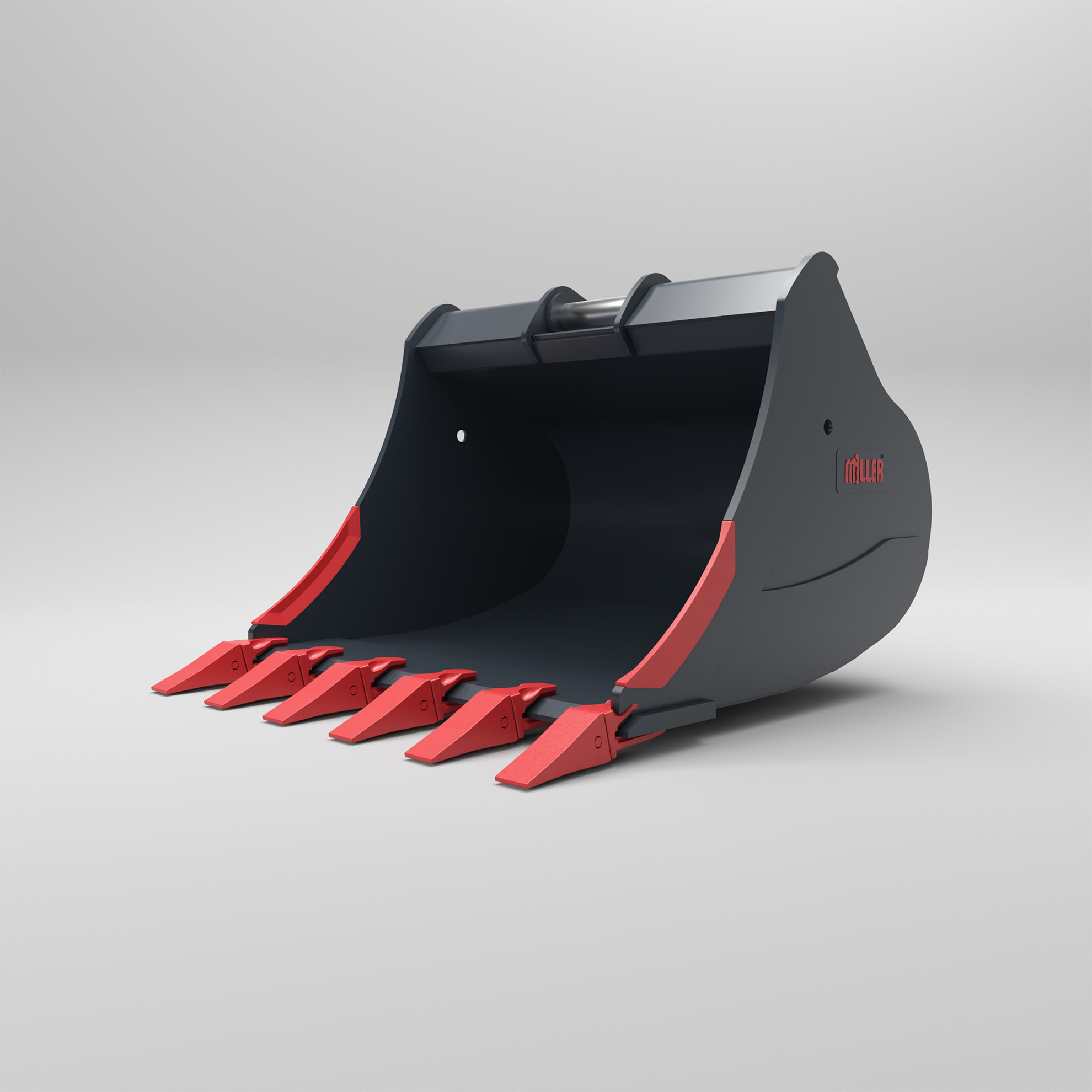

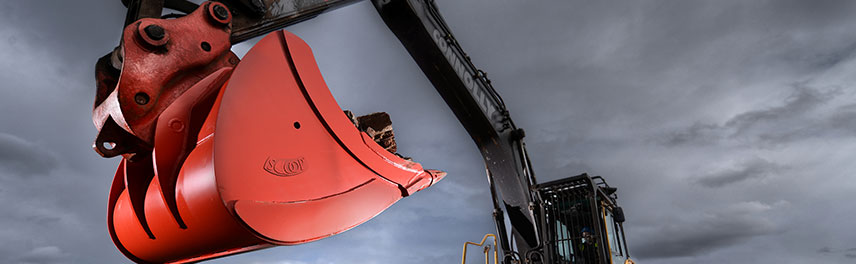

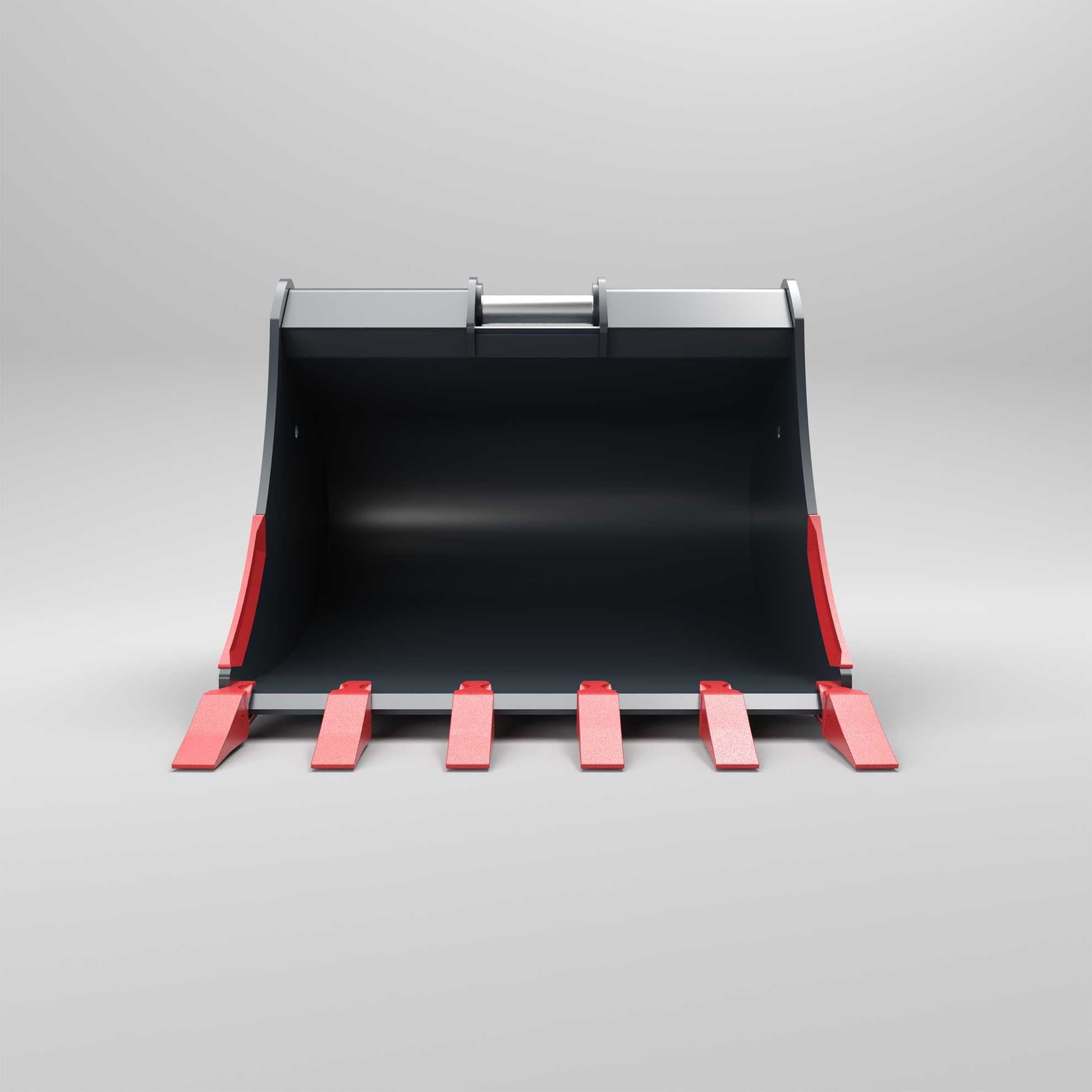

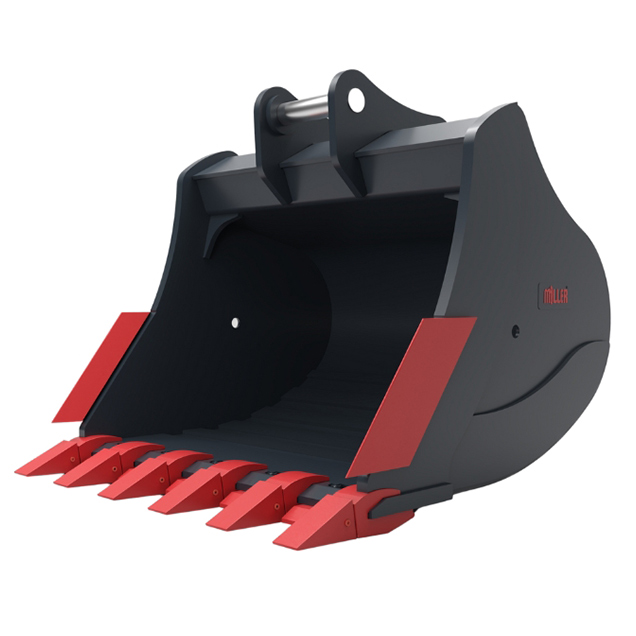

The precision-engineered scoop bucket has been designed to cut through the ground with minimal resistance and drag to release the full potential in terms of digging power and bucket capacity. With inset pins, the bucket – when combined with a coupler for increased versatility to change work tools – can uniquely achieve the same results as directly mounting a bucket.
Scoop Mount
(8-25t as standard)
Bolt-on Edge
(8-25t)
Weld-on Edge
(8-25t made to order)
Heavy Duty Teeth
(8-25t)RECOMMENDED APPLICATIONS:
Ideal for muckshift, overburden removal and land clearance.
KEY SPECIFICATIONS
Range (t) | Width (mm) | Capacity (m3) | Weight (kg) |
|---|---|---|---|
8-10 | 300 900 | 0.09 0.4 | 148 257 |
11-14 | 450 600 750 900 1200 | 0.21 0.31 0.42 0.52 0.74 | 242 277 311 370 442 |
19-21 | 450 600 900 1500 | 0.3 0.45 0.76 1.42 | 483 518 642 915 |
22-25 | 600 750 900 1100 1200 1350 1500 1700 | 0.49 0.67 0.85 1.04 1.23 1.43 1.62 1.82 | 950 1095 1140 1260 1330 1435 1535 1655 |

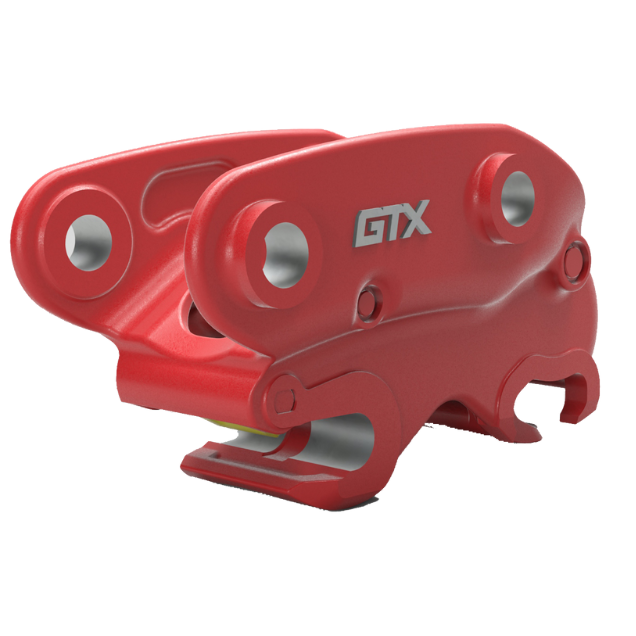

Our scoop digging buckets are available as a bundle with our bundle sets for machines sized 8-20t, allowing our customers to save money when bought together with our hydraulic couplers.

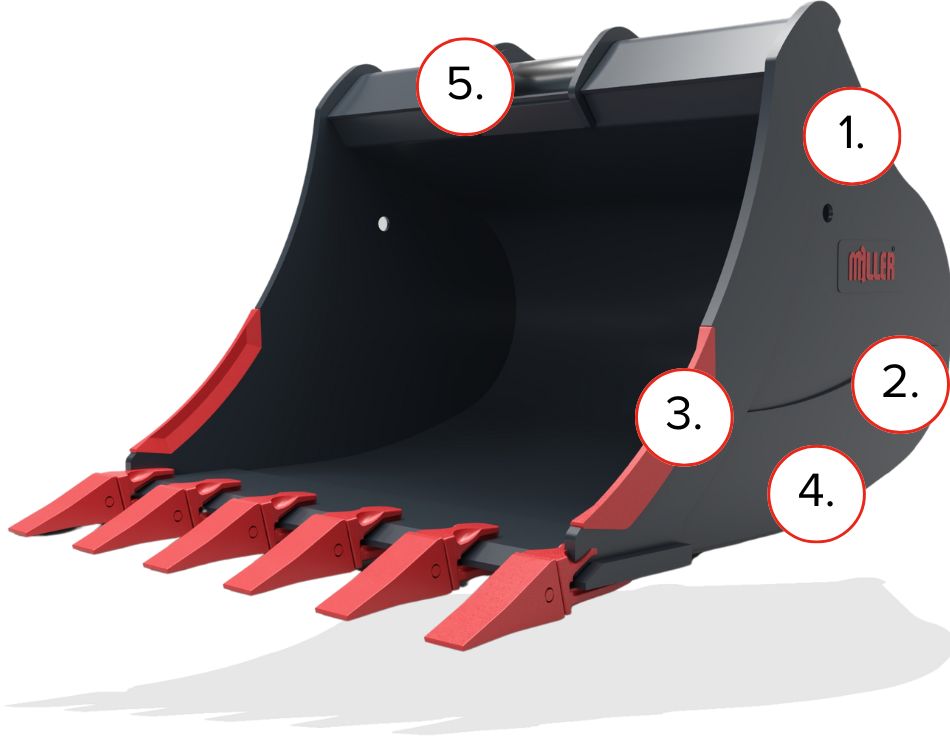

Find out moreFEATURES
Miller’s highly innovative scoop bucket delivers the benefit of a direct mount bucket, driving fuel efficiency savings.
The dual radius shell has been designed with maximum resistance in high wear areas with further protection from the side cutters.
The bottom side plate – a high wear area - is armoured with increased resistance using additional high wear resistant steel.

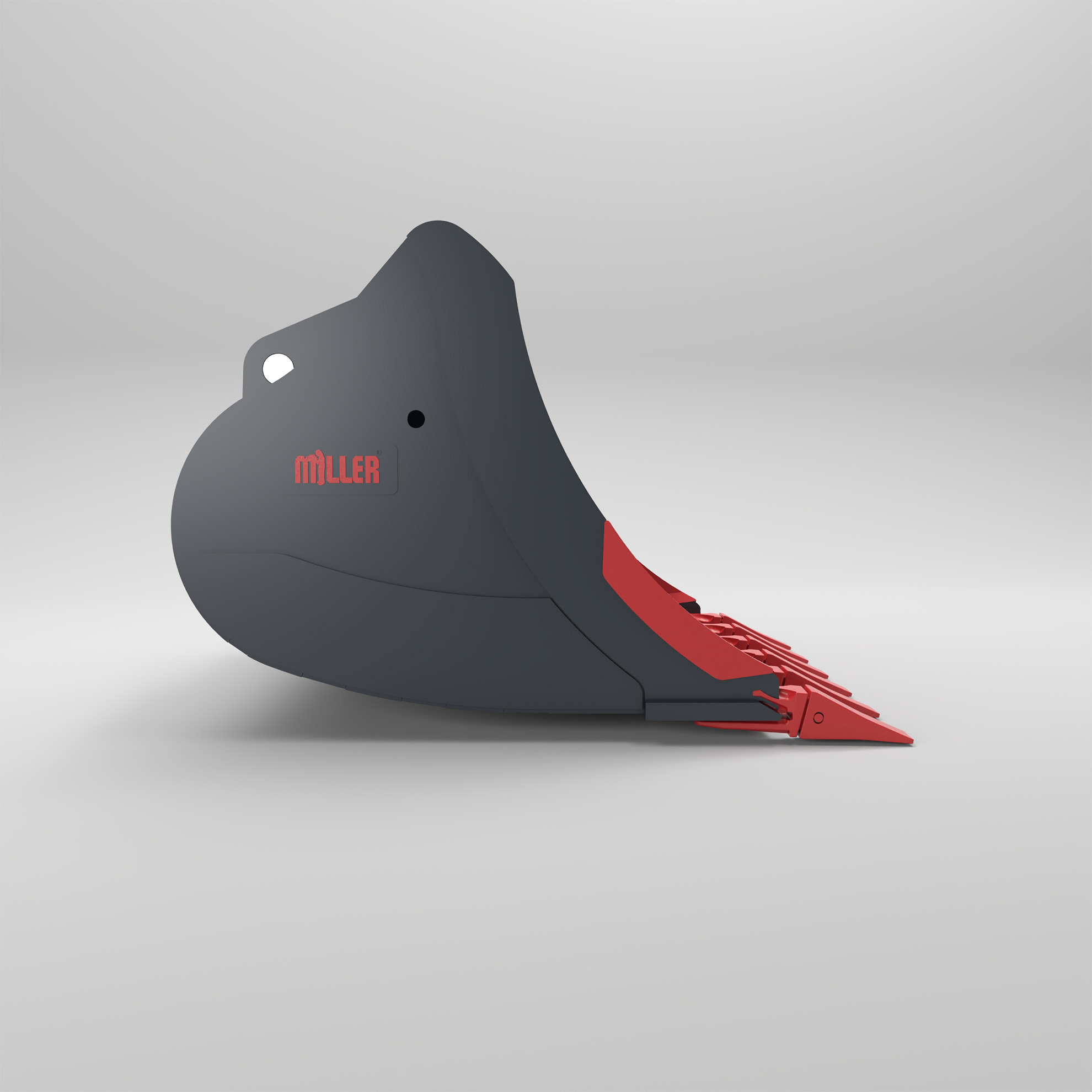

The side cutter has been designed with an arrow-like shape allowing superior cutting through the ground.
External wearbars prolong the lifespan of the bucket with additional protection added to the high wearing locations of the bucket.
Designed to reduce tip radius to maximise breakout force.
